PEM-6090C Waterproof design Etching Tool cnc marble engraving machine
Product Introduction
This cnc marble engraving machine is cast iron and is tempered and precision machined for 15mm natural marble. The CNC marble engraving machine features a unique waterproof design and long life for transmission components and circuit components for long-term use. The circulatory system and sink design ensure a higher wear resistance of the tool. When a certain amount of power is reached, the breakpoint memory is processed the next day to ensure an accident (broken knife) or the next day. The engraving speed is fast, and the maximum working speed can reach 8000mm per minute. Overall, this is a very safe and efficient stone engraving machine, which is a good choice if needed!
Product Features
1. High-speed machining, power, breakpoint, next day processing, convenient for labor.
2. Waterproof design, high safety, and ensure the safety of internal parts of the machine.
3. The engraving speed is fast, up to 8000mm/min.
4. Wide range of applications, in addition to stone processing, marble, granite, tombstone and other processing, can also be used for processing wood, ABS, PVC, acrylic and other non-metallic materials.
Product Specifications
| Model | PEM-6090C |
| Working area | 600*900mm |
| Machine Volume | 3200*2020*1250mm |
| Main axle power rate | 2.2/3/4.5/5.5KW(optional) |
| Main axle rotating speed | 6000-24000 rpm/min |
| Max.Working speed | 8000mm/min |
| Feeding height | 200mm |
| Engraving tools | 3.175/4/6/12.7mm |
| Re-positioning Accuracy | 0.02mm |
| Supported File Format | DXF,PLT,G code,MMG,U00,NC,ENG |
| Power | AC220V(380V)/50HZ (optional:AC110V/60HZ ) |
| Weight | 1600 kgs |
Application
The cnc marble engraving machine’s application range:
Used in marble, jade, ceramic tile, artificial stone, acrylic, glass, copper, aluminum, iron and other non-metallic materials and common metal materials.
The cnc marble engraving machine’s application industry:
Used for engraving and cutting of advertising characters, cutting and engraving of medium density fiberboard, acrylic processing, crafts, signs, nameplates, electronic chassis openings, small cylindrical three-dimensional relief, PVC cutting, etc.

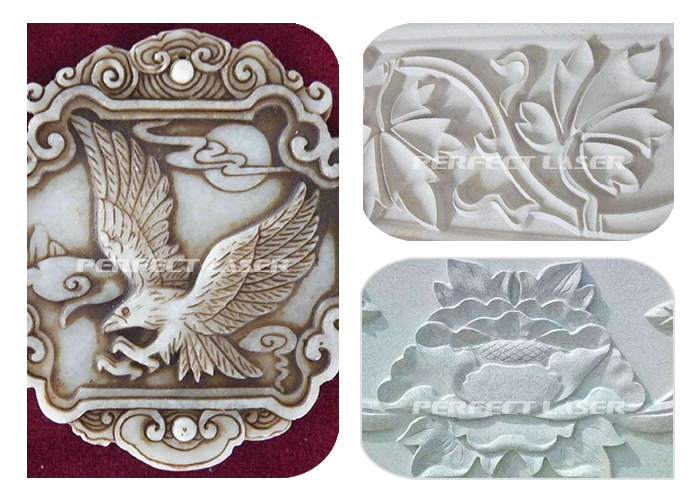

Sample Show
