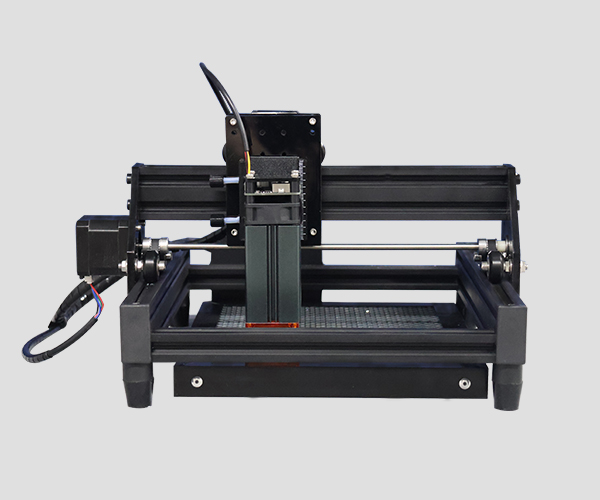

10W Small Portable Automatic Laser Engraving Machine for Leaves
(Model:PEDK-30)
Machine Introduction
The portable laser engraving machine is equipped with a high-precision motion control system, intelligent image processing software and an automatic positioning device, which can achieve millimeter-level engraving accuracy.It’s also compatible with a variety of leaf materials (such as peace leaves, sycamore leaves, maple leaves, bodhi leaves, etc.) to meet personalized customization needs.
Product Features
1. The engraving accuracy can reach 0.01mm, restoring the details of complex patterns and ensuring the artistic expression of the works;
2. Using natural leaves as the carrier, no additional chemical treatment is required, and the natural texture and color of the leaves are retained after engraving;
3. In addition to leaves, it can also expand the engraving of wood chips, bamboo chips, leather, metal and other materials to improve the utilization rate of the equipment.
4. Modular body, small desktop area, light and easy to store, suitable for studios, markets, teaching and other scenes.
5. Support computer/mobile phone APP/wireless control, offline engraving without lag, meeting personalized instant needs.
6. Magnetic protective cover, simple disassembly, opening and closing without tools, preventing laser leakage while taking into account the convenience of high-frequency operation.
7. Funnel-shaped smoke filter, extended laser life, avoid laser corrosion, continuous work for 10 hours without dust accumulation.
Application:
1. Application industries
Cultural and creative industries, wedding commemorations, corporate gifts, education market, personalized consumer markets such as home decoration, luxury goods co-branding, etc.
2. Application materials
It can be applied to various types of leaves, wood chips, leather, metal, cardboard, stone, plastic, acrylic, etc.
Technical Data
| Machine Name | Portable 10W Leaf Carving Laser Engraving Machine |
| Product Dimensions (mm) | 320x280x200 |
| Packaging Dimensions (mm) | 400x400x250 |
| Laser Focal Length | 25mm |
| Workpiece Placement Height (mm) | 60mm |
| Power Input | DC12V |
| Communication Interface | USB Interface |
| Cooling Method | Air Cooling |
| Laser Lifespan (Hours) | >=10000 Hours |
| Engraving Area | 200×230mm |
| Engraving Precision | 0.01mm |
| Operating Environment | -15℃~30℃ |
| Supported Platforms | Windows/MacOS/APP (iOS and Android) |
| Supported Image Formats | JPEG, BMP, GIF, PLT, PNG, DXF |
| Material | High-Strength Aluminum Alloy |
| Laser Specifications |
| Laser Precision | 0.01mm |
| Engraving Accuracy | 0.02 |
| Optical Power | 10W |
| Focal Length | 25mm |
| Wavelength (nm) | 450nm |
| Input Voltage | 12v |
| Input Current (A) | 2A |
| Wireless WiFi Connectivity | Support IOS and Android Applications |
| Focal Spot Precision | 0.02mm |
| Laser Module Dimensions (mm) | 40x40x130 |
| Net Weight | 260g |
